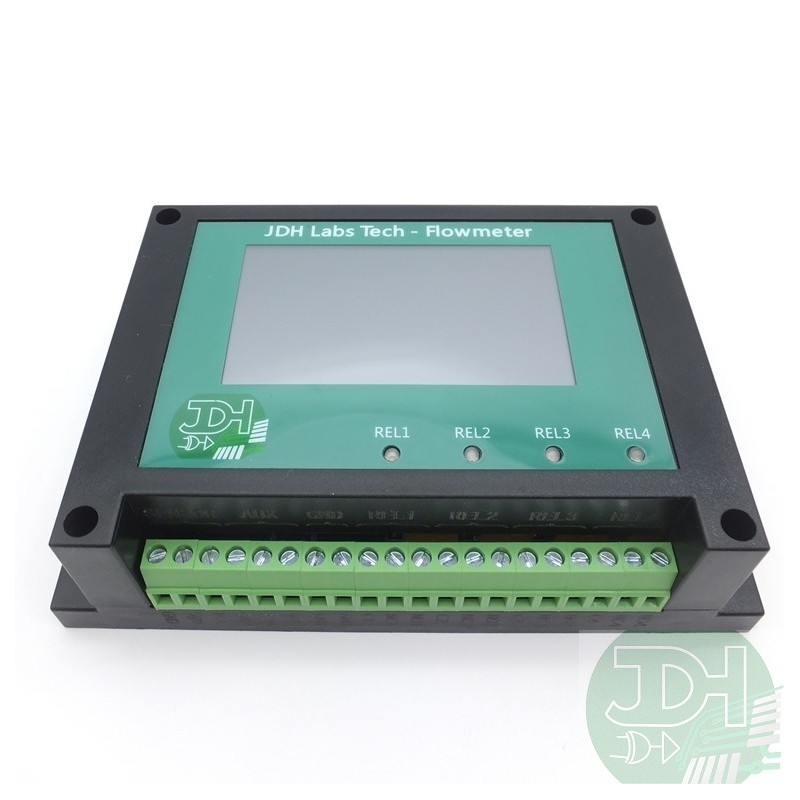

Main Features:

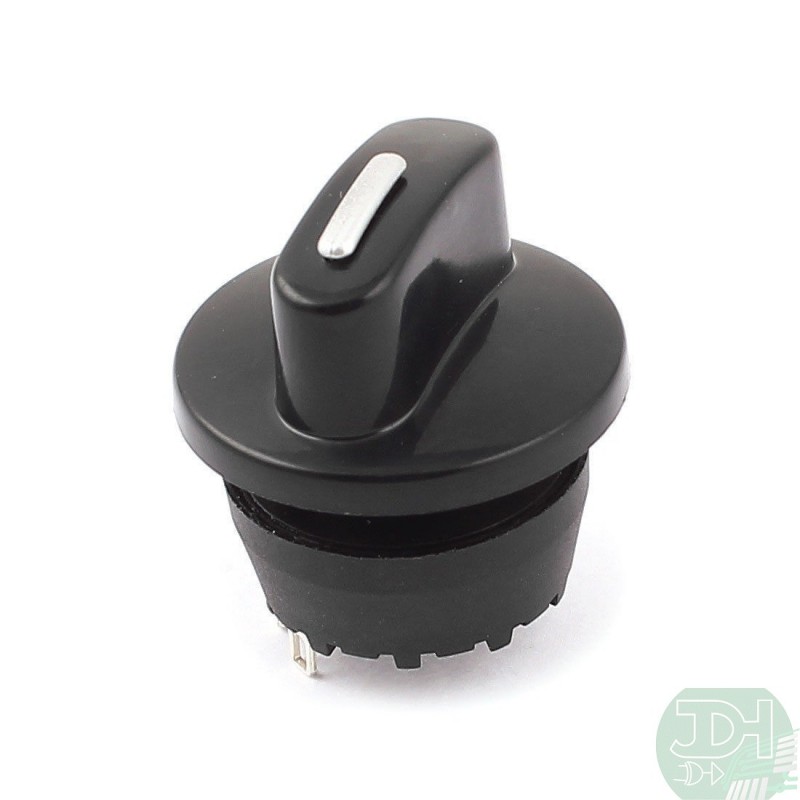

• 4 Capacity Selector: Allows you to program and switch between 4 different fill volumes.
• Configurable Alarms: Activates audible alerts and a dry contact based on flow rate or volume.
• Volume Countdown: Automatically decrements as the programmed liters are dispensed.
• Display in Liters or Gallons (US).
• User-Friendly and Intuitive Touchscreen Interface (displayed in English).
• Digital Input for alarm reset, ideal for industrial automation.

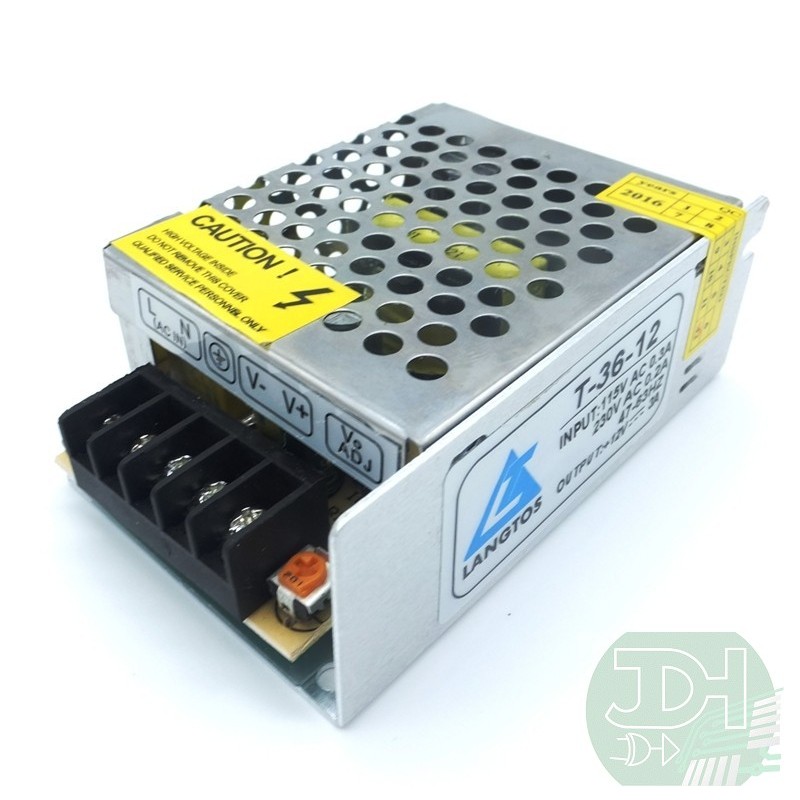

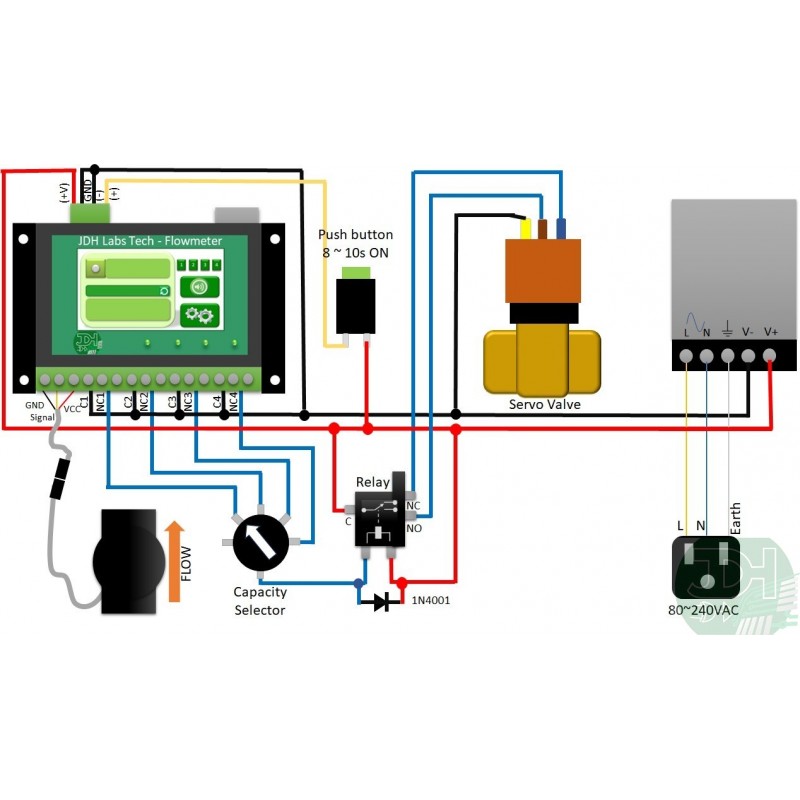

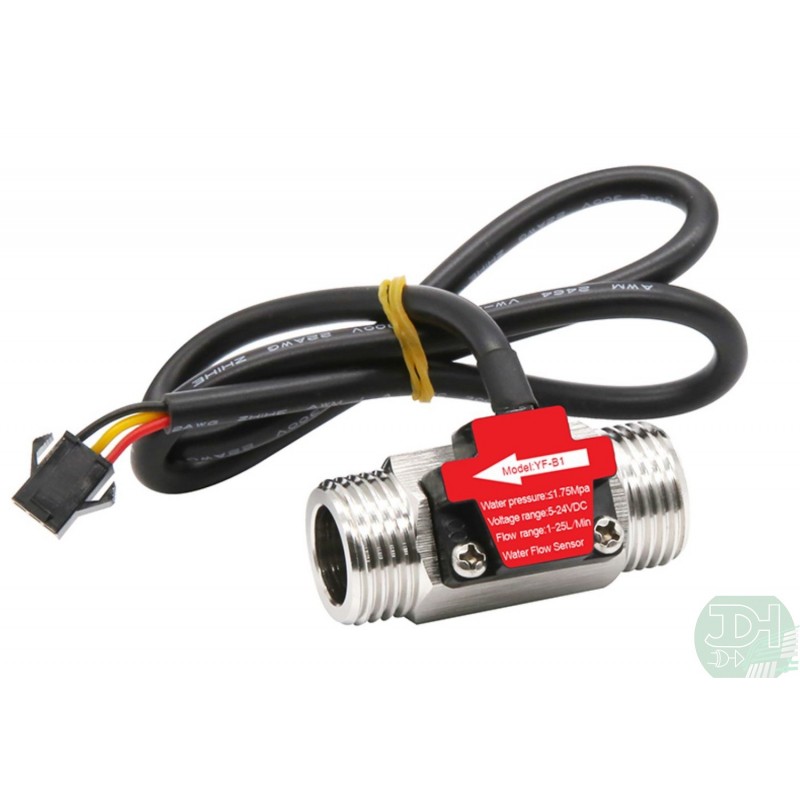

• Design Compact with housing for 35mm DIN rail. Screw terminals for sensor and alarm connection. Value settings adjusted by decade for faster response. Installation and Configuration: The flow sensor must be installed vertically, with the flow running from bottom to top. The pipe must be completely full at all times to ensure accurate measurements. Sensor setting: 56,800 µL/pulse Technical Specifications: Power Supply: 6 to 9 DC voltage at 300 mA (minimum)
• Operating temperature: -10°C to 50°C (indoor use, do not expose to sunlight)
• Minimum measurement: 0.01 Liters
• Maximum measurement: 9,999,999.99 Liters
• Minimum flow rate: 0.01 L/min
• Maximum flow rate: 4,960 L/min (theoretical)
• Minimum liters per pulse: 140 mL/pulse
• Maximum liters per pulse: 83,400 mL/pulse
• Dimensions: 14.5 cm x 9.0 cm x 4.1 cm

Alarm Dry Contacts:

• Resistive Load: 0.40 A at 125 VAC / 2 A at 30 VDC
• Inductive Load (PF=0.4, L/R=7ms): 0.20 A at 125 VAC / 1 A at 30 VDC
• Maximum Load Current: 3 A
• Maximum Operating Voltage: 250 VAC / 220 VDC
• Resistive Switching Capacity: 50 VA / 60 W
• Inductive Switching Capacity (PF=0.4, L/R=7ms): 25 VA / 30 W
